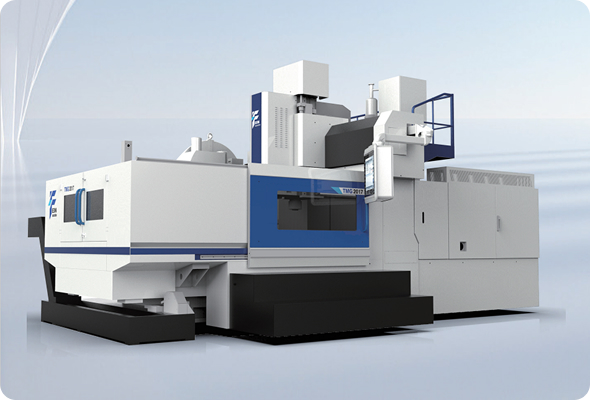

Aerospace-Grade 5-Axis Machining---Built on Self-Developed Gantry Machine Tools
High precision | High efficiency | High stability
TMG Series
Fanuc 0i MF plus/Siemens 828D
Share:
FOR ENGINEERS
Overall structure design TMG Series
|
Technical Specs |
unit |
TMG1614 |
TMG2018 |
TMG3220 |
TMG4028 |
TMG6032 |
|
Workbench surface size W × L |
mm |
1200×1700 |
1600×2200 |
1800×3000 |
2500×4000 |
3000×6000 |
|
X-axis travel |
mm |
1600 |
2000 |
3200 |
4000 |
6000 |
|
Y-axis travel |
mm |
1500 |
1900 |
2000 |
2800 |
3200 |
|
Z-axis travel |
mm |
800 |
800 |
1000 |
1250(Optional1500) |
1250(Optional1500) |
|
Dragon Gate Width |
mm |
1500 |
1900 |
2000 |
2800 |
3200 |
|
Spindle end face to worktable surface |
mm |
70～870 |
205～1005 |
180～1180 |
240～1490 |
330～1580 |
|
T-slot (number – size × spacing) |
mm |
7-22×170 |
9-22×180 |
9-22×190 |
11-28×200 |
中间15-28×200 |
|
Spindle Specifications |
|
BT50 |
||||
|
Spindle drive type |
|
Belt 6000r/min |
Long straight drive 4000r/min |
|||
|
spindle motor |
Kw |
15/18.5 |
15/18.5 |
22/26 |
22/26 |
|
|
Fast feed rate |
m/min |
15 |
10 |
8 |
||
|
Cutting feed rate |
m/min |
10 |
6 |
5 |
||
|
Workbench load capacity |
t |
2.5 |
4.5 |
5 |
12 |
20 |
|
The total weight of the machine is about |
t |
15 |
19 |
23 |
45 |
62 |
|
Typical CNC system configurati |
on |
Fanuc 0i MF plus/Siemens 828D |
||||
FOR PROCUREMENT
FOR QUALITY
01
Finite Element Analysis
The machine tool design was carried out in cooperation with renowned domestic universities, and internationally advanced finite element analysis was adopted to ensure that the dynamic and static characteristics of the machine tool are reasonable, the load is reasonable, and the load distribution is uniform.
02
Collimator
The machine tool design was carried out in cooperation with renowned domestic universities, and internationally advanced finite element analysis was adopted to ensure that the dynamic and static characteristics of the machine tool are reasonable, the load is reasonable, and the load distribution is uniform.
03
Vibration meter
The machine tool design was carried out in cooperation with renowned domestic universities, and internationally advanced finite element analysis was adopted to ensure that the dynamic and static characteristics of the machine tool are reasonable, the load is reasonable, and the load distribution is uniform.
04
Bar ballinspection
Each machine is equipped with a ball gauge from RENISHAW of the UK. It is used to calibrate the true circularity and the geometric accuracy of the machine, and at the same time, circular cutting experiments are conducted to ensure the 3D processing accuracy and circular accuracy of the machine.
05
Three axes laser inspection
Each machine of Ningqing is calibrated using the laser interferometer from RENISHAW Company in the UK. Precise inspections and compensations are carried out for pitch errors, backlash, positioning accuracy, and repeatability positioning accuracy, etc., to ensure the dynamic, static stability and processing accuracy of the machines.
06
Three-coordinate system
We have established a comprehensive quality control system covering the entire chain from raw material warehousing and processing to finished product delivery. Using a coordinate measuring machine (CMM) as the core inspection tool, we conduct dimensional and geometric tolerance checks on key components. At the final product delivery stage, each machine tool must undergo standard test piece processing and testing, and an S-piece test is performed to verify dynamic accuracy and contour deviation using universal standards. The CMM is integrated throughout the entire product lifecycle, forming a closed-loop manufacturing process of "inspection-feedback-compensation," ensuring that every CNC machine tool leaving the factory possesses verifiable accuracy.
