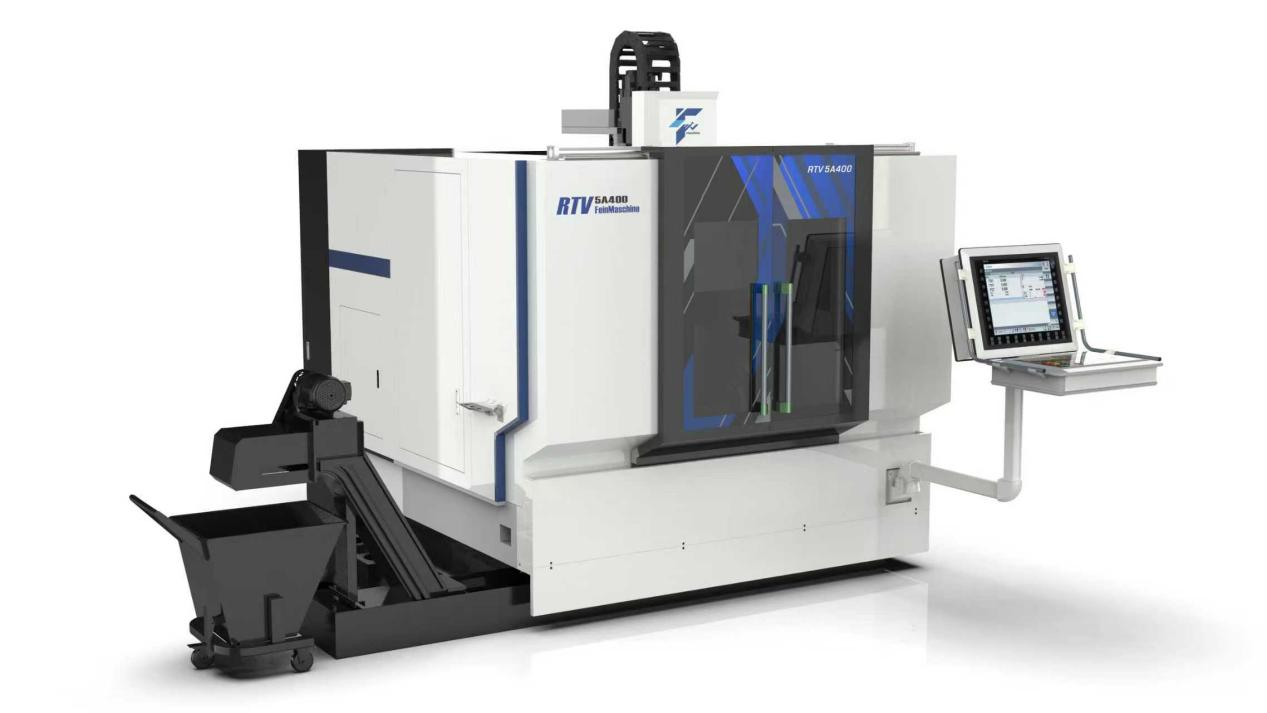

Gantry Movable Cradle Five-Axis Machining Center

"Fein Maschine" is a new brand under Ningqing Aerospace Intelligent Equipment. Relying on Ningqing Aerospace's tech strength and combining advanced international manufacturing processes, it focuses on innovation, constantly bringing in cutting-edge technologies, and is dedicated to providing high-precision, high-performance intelligent equipment for the aerospace field.

Gantry Movable Cradle Five-Axis Machining Center

High Speed | High Torque | Turning-Milling Combo

With Turning-Milling Combo Function

Optionally select turning tool holder

Easily achieve light turning functions

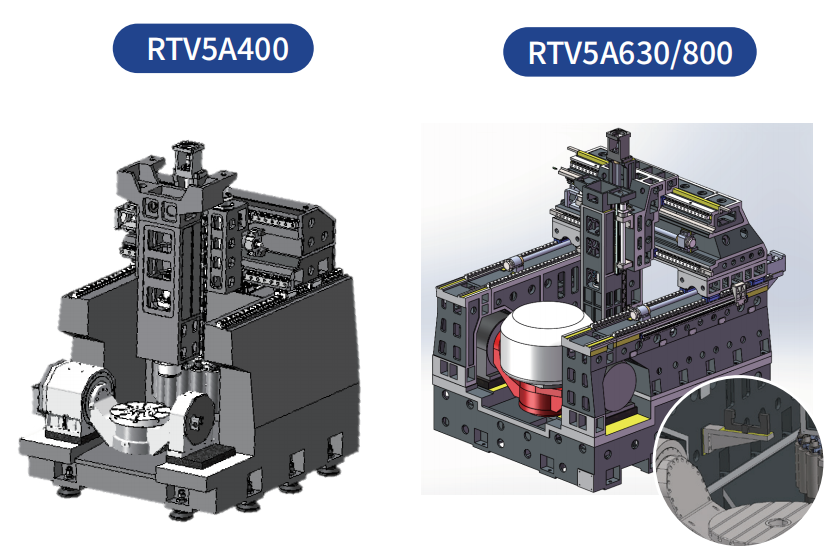

Using a gantry structure, the one-piece bed offers high rigidity and dynamic performance;

The gantry uses a dual-drive four-rail system with internationally advanced synchronous control technology;

Increased travel to expand the machining range;

Equipped with imported high-precision lead screws and large imported roller linear guides;

Paired with a dual-drive cradle rotary table for high precision and dynamic response;

Dual-speed, high-torque, high-speed electric spindle, capable of machining both titanium and aluminum alloys;

Comes standard with an umbrella-type tool magazine;

The tool setter is fixed on the bed to reduce measurement errors;

Equipped with an absolute linear scale to improve machine accuracy.

Electric spindle

High-speed milling of aluminum is worry-free

High-torque milling of titanium is no problem

I can handle turning too

Dual-speed electric spindle HSK-A63 (RTV5A400)

Low speed: 42/50 kW, 71.7/85 Nm, max speed 14,000 rpm

High speed: 42/50 kW, 28.6/33.7 Nm, max speed 20,000 rpm

Dual-speed electric spindle HSK-A63/A100 (RTV5A630/800)

Low speed: 37/45 kW, 163/196.5 Nm, max speed 7,500 rpm

High speed: 42/50 kW, 54/65 Nm, max speed 12,000 rpm (for A63 max speed 15,000 rpm)

Direct Drive Cradle Turntable

Cradle Five-Axis Machining Center Series
