High speed 48 m/min, cutting 5mm steel

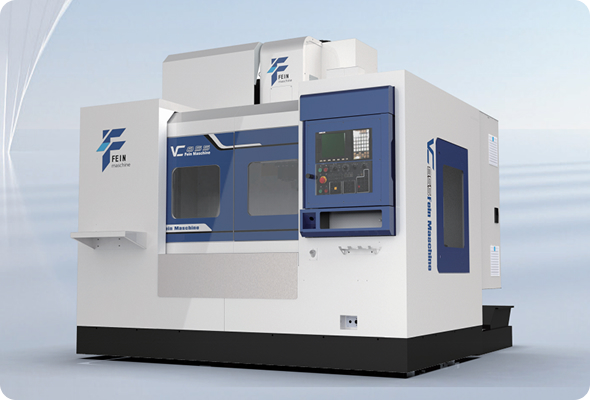

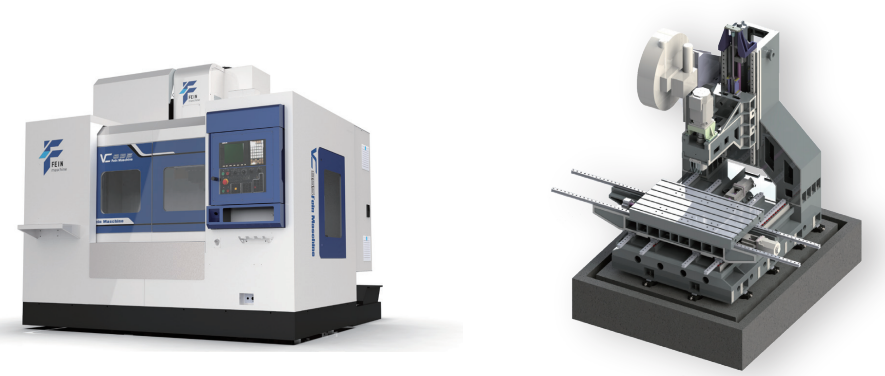

CNC Vertical Milling Center
|
Technical Specs |
unit |
VC855 |
VC1165 VC1270 |
VC1580 |
|
|
Workbench area |
mm |
550×1000 |
600×1200 |
700×1360 |
900×1600 |
|
T-slot |
mm |
5-18×90 |
5-18×100 |
5-18×120 |
7-22×110 |
|
Maximum load of the workbench |
Kg |
500 |
800 |
1000 |
1500 |
|
X/Y/Z axis travel |
mm |
800×550×550 |
1100×650×600 |
1200×700×700 |
1500×800×700 |
|
Linear guide specifications |
mm |
X:35/Y:45/Z:45rollers |
X:45/Y:45/Z:45rollers |
X:45/Y:55/Z:55rollers |
X:55/Y:45/Z:55rollers |
|
Spindle end face to worktable surf |
ace mm |
120-670 |
120-720 |
175-875 |
160-860 |
|
Spindle center to guideway surfaceA |
mm |
590 |
665 |
770 |
855 |
|
Spindle speed |
rpm |
Belt type 8000/10000; direct drive 12000 |
(BT40) Belt drive 8000/10000; Direct drive 12000 (BT50) Belt drive 6000; Direct drive 8000 |
Belt drive 6000; Direct drive 8000 |
|
|
spindle bore taper |
|
BT40-150 |
BT40-150 |
BT40-150/BT50-155 |
BT50-155 |
|
Spindle motor power |
Kw |
9/13.5 (Siemens) |
9/13.5(Siemens) |
12/18(Siemens) |
12/18(Siemens) |
|
Cutting feed rate |
m/min |
48 |
24 |
24 |
20 |
|
Fast movement speed |
m/min |
48 |
24 |
24 |
20 |
|
Tool magazine capacit |
y |
Disc 24 |
|
||
|
Tool change time |
s |
1.8 |
|||
|
定位精度 |
mm |
0.01 |
|||
|
Positioning accuracy |
mm |
0.006 |
|||
|
Overall weight |
Kg |
5500 |
6500 |
8000 |
12000 |
|
Dimensions |
mm |
2600×2200×2600 |
2950×2550×2600 |
3450×2800×2700 |
4300×3200×3000 |
|
Total power supply |
Kw |
22 |
25 |
30 |
35 |
|
Typical CNC system configuration |
|
Siemens、Fanuc、domestically made |
|||
Cutting efficiency: 45# steel VC855: 200mm³/min, VC1165: 250mm³/min, VC1270: 320mm³/min
Aluminum parts (high speed): VC855: 1000mm³/min, VC1165: 1100mm³/min, VC1270: 1300mm³/min
Heavy cutting and high precision, it can replace imported horizontal machining centers and perform
Design Features
1. The spindle has high power and strong cutting force, suitable for low-speed machining of cast iron and steel, especially for large molds;
2. Large travel, wide processing range;
3. Self-made CNC rotary table allows machining four surfaces in one setup;
4. T-slot integral structure, offering high rigidity, high precision, and high stability.

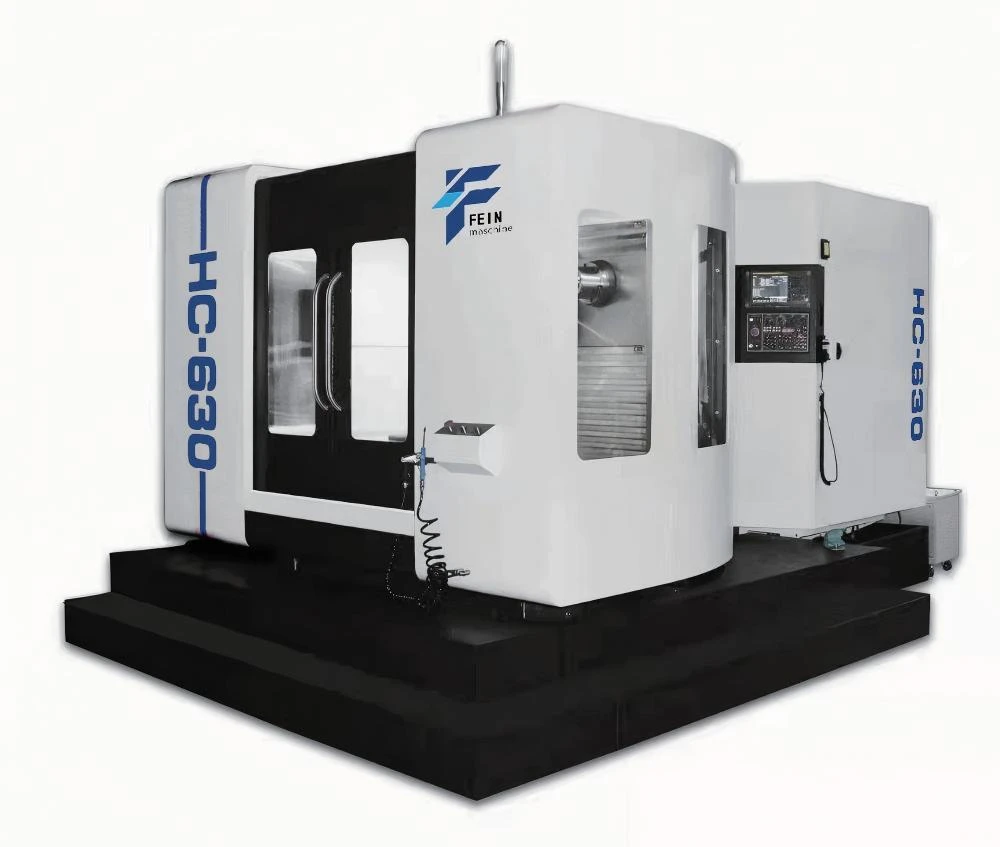

CNC horizontal milling machining center
|
Technical Specs |
unit |
HC500 |
HC630 |
HC800 |
HC1000 |
HC630 (Dual worktable) |
HC800 (Dual worktable) |
|
Workbench area |
mm |
500×500 |
630×700 |
800×800 |
1000×1000 |
2×630×700 |
2×800×800 |
|
Workbench indexing |
° |
1×360 |
|||||
|
T-slot |
|
5-18 |
24×M16（Quantity × Screw Holes） |
||||
|
graduation accuracy |
″ |
10 |
12 |
||||
|
Maximum load of the workbench |
Kg |
700 |
1000 |
1500 |
2000 |
950 |
1500 |
|
X/Y/Z-axis travel |
mm |
700/600/580 |
1050/750/900 |
1300/1000/1000 |
1600/1000/1000 |
1050/750/900 |
1300/1000/1000 |
|
Guide rail type |
|
Three-axis roller |
|||||
|
Spindle center to worktable |
mm |
50-650 |
120-870 |
120-1120 |
120-1120 |
0-750 |
0-1000 |
|
From spindle end face to table cen |
ter mm |
160-740 |
130-1030 |
200-1200 |
200-1200 |
130-1030 |
200-1200 |
|
Spindle bore taper |
|
BT40 |
BT50 |
||||
|
Spindle speed |
rpm |
8000 |
6000 |
||||
|
Spindle motor power |
Kw |
11/15 |
15/18.5 |
||||
|
Cutting feed rate |
m/min |
10 |
|||||
|
Fast movement speed |
m/min |
30 |
30 |
24 |
24 |
24 |
24 |
|
Tool magazine capacity / tool change time |
|
24T/3S |
30T/5.5S |
40T/5.5S |
40T/5.5S |
40T/5.5S |
40T/5.5S |
|
Positioning accuracy |
mm |
0.012 |
0.012 |
0.012 |
0.012 |
0.012 |
0.012 |
|
Repeat positioning accuracy |
mm |
0.008 |
0.008 |
0.008 |
0.008 |
0.008 |
0.01 |
|
Overall weight |
t |
7 |
12 |
17 |
18 |
14 |
18 |
|
Dimensions |
mm |
3050×2050×2500 |
3500×6000×3000 |
4800×6400×3900 |
4800×6400×3900 |
3500×7500×3000 |
5500×8000×3000 |
|
CNC system |
|
Fanuc 0i MF Plus/Siemens 828D |
|||||

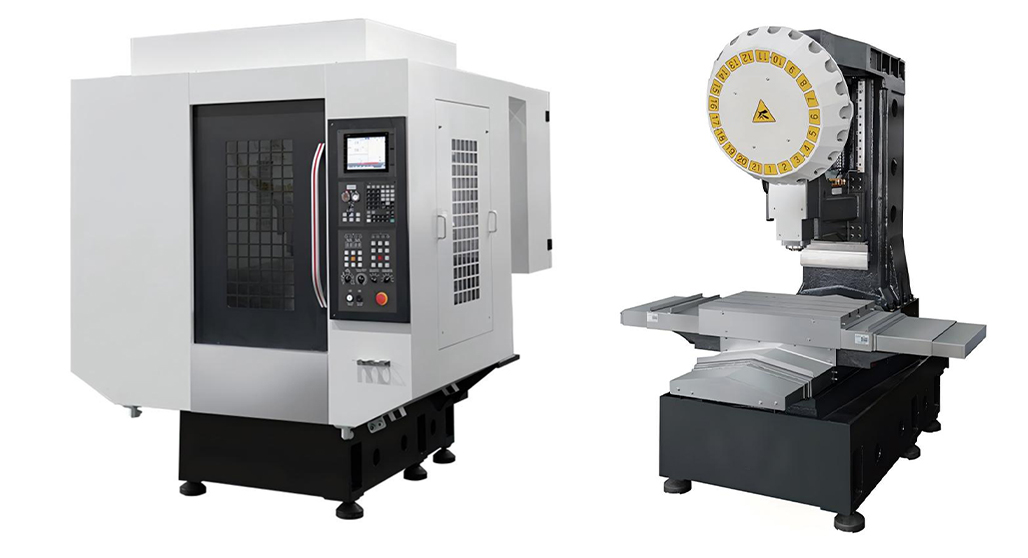

Drilling and tapping center
|
Technical Specs |
unit |
T6 |
T7 |
T8 |
|
Workbench area |
mm |
700×420 |
780×420 |
1000×500 |
|
T-slot |
mm |
3-14×125 |
3-14×125 |
5-18×100 |
|
Maximum load of the workbench |
kg |
250 |
250 |
350 |
|
X/Y/Z axis travel |
mm |
600/400/300 |
700/400/300 |
800/500/330 |
|
Linear guide specifications |
mm |
X:30/Y:30/Z:30 |
X:30/Y:30/Z:30 |
X:35/Y:35/Z:35 |
|
Spindle end face to worktable surface |
mm |
150-450 |
150-450 |
160-490 |
|
Spindle center to guideway surface |
mm |
464 |
464 |
546 |
|
Spindle speed |
rpm |
direct connection20000 |
||
|
Spindle bore taper |
|
BT30 |
||
|
Spindle motor power |
kw |
5.5（Mitsubishi） |
||
|
Cutting feed rate |
mm/min |
1-10000 |
||
|
Fast movement speed |
mm/min |
48/48/48 |
||
|
Tool magazine capacity |
|
21 |
||
|
Time to change the blade |
s |
1.4/1.9 |
||
|
Positioning accuracy |
mm |
0.01 |
||
|
Repeat positioning accuracy |
mm |
0.006 |
||
|
Overall weight |
kg |
2900 |
2900 |
4500 |
|
Dimensions |
mm |
1760×2320×2240 |
1760×2320×2240 |
2500×2500×2300 |
|
Total power supply |
Kw |
15 |
15 |
20 |
|
CNC system |
|
Mitsubishi M80B |
||

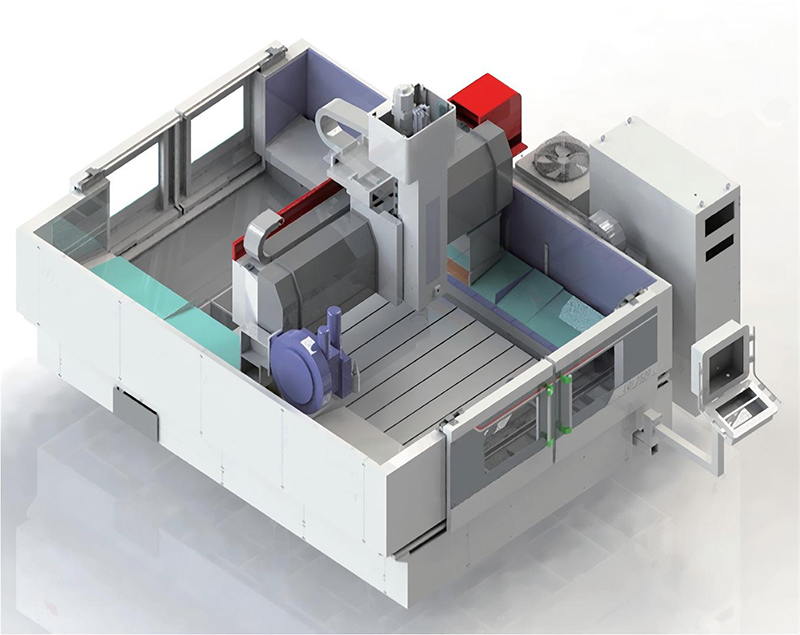

A handy tool for processing new energy vehicle battery boxes
High-speed light machining center
|
Technical Specs |
unit |
LQI2520 |
Technical Specs |
unit |
LQI2520 |
|
Workbench area |
mm |
2500×1800 |
Cutting feed rate |
m/min |
20 |
|
T-slot |
mm |
9×18 |
Fast move speed |
m/min |
40/30/20 |
|
Maximum load of the workbench |
t |
10 |
Tool magazine capacity |
|
24 |
|
X-axis travel |
mm |
2000 |
Tool change time |
s |
4 |
|
Y/Z travel distance |
mm |
2500×450 |
Positioning accuracy |
mm |
0.02 |
|
Guide rail type |
|
Three-axis rails, two roller bars on the Z-axis |
Repeat positioning accuracy |
mm |
0.01 |
|
From the spindle end face to the workbench |
mm |
180-630 |
Overall weight |
t |
13 |
|
Spindle taper |
|
BBT40 |
Dimensions |
mm |
5250X4160X3300 |
|
Spindle speed |
rpm |
15000（Direct connection） |
Total power supply |
Kw |
22 |
|
Spindle motor power |
Kw |
8.4 |
CNC system |
|
Siemens 828D、Fanuc 0i MF plus |
FOR PROCUREMENT
FOR QUALITY
01

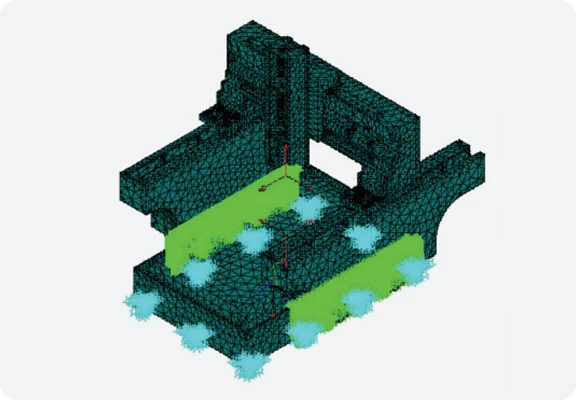

Finite Element Analysis
The machine tool design was carried out in cooperation with renowned domestic universities, and internationally advanced finite element analysis was adopted to ensure that the dynamic and static characteristics of the machine tool are reasonable, the load is reasonable, and the load distribution is uniform.
02

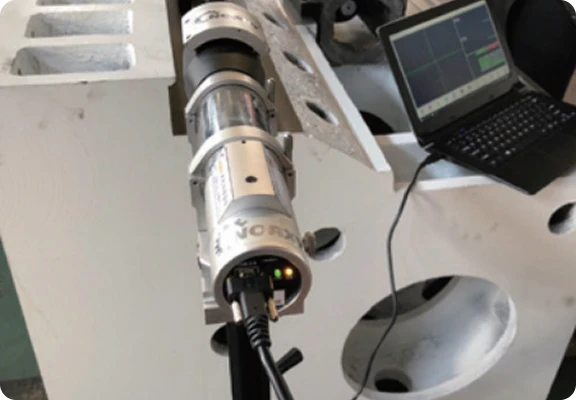

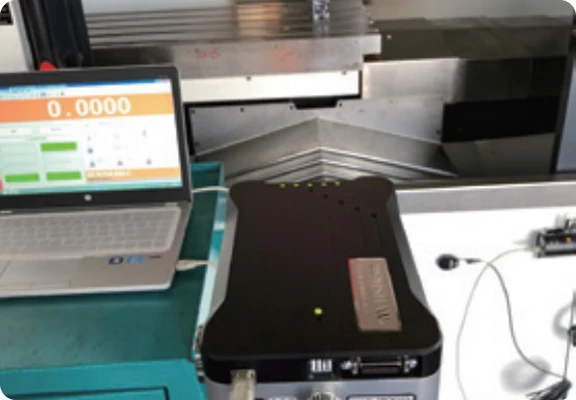

Collimator
The machine tool design was carried out in cooperation with renowned domestic universities, and internationally advanced finite element analysis was adopted to ensure that the dynamic and static characteristics of the machine tool are reasonable, the load is reasonable, and the load distribution is uniform.
03

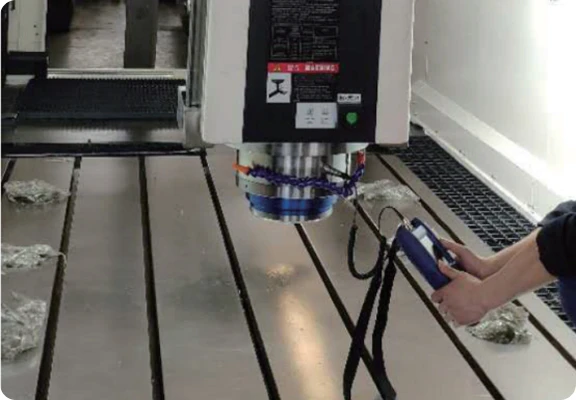

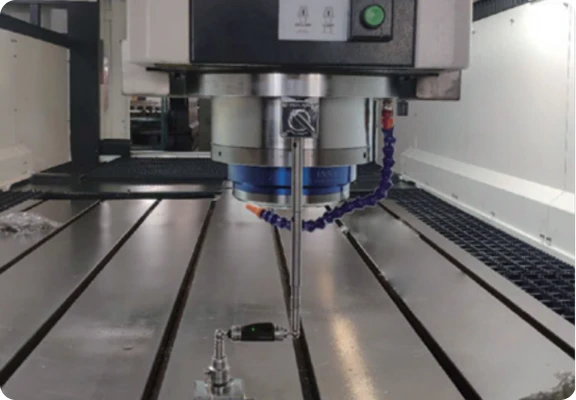

Vibration meter
