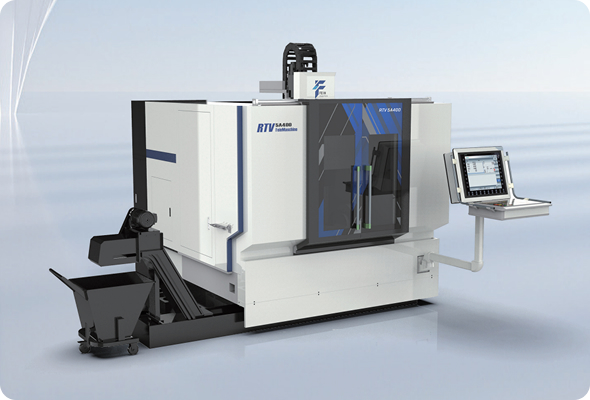

Beam-moving rocking cradle five-axis machining center

FOR ENGINEERS

PRODUCT INTRODUCTION

With combined turning and milling function, it means you can easily achieve light turning by choosing the appropriate turning tool holder.

1.Usesagantrystructure,withaone-piecebedthatoffershighrigidityanddynamic performance;

2.Gantrywithdual-drivefour-railstructure,featuringinternationallyadvancedsynchronous controltechnology;

3.Increasedtraveltoexpandthelimitsofmachiningrange;

4.Equippedwithimportedhigh-precisionballscrewsandlargeimportedrollerlinearguides;

5.Comeswithadual-drivecradlerotarytable,providinghighprecisionanddynamicresponse;

6.Dual-speed,high-torquehigh-speedspindle,suitableforbothtitaniumandaluminum machining;

7.Standardumbrella-styletoolmagazine;

8.Toolsetterfixedonthebedtoreducemeasurementerrors;

9.Pairedwithabsolutevaluelinearscalestoimprovemachineaccuracy.

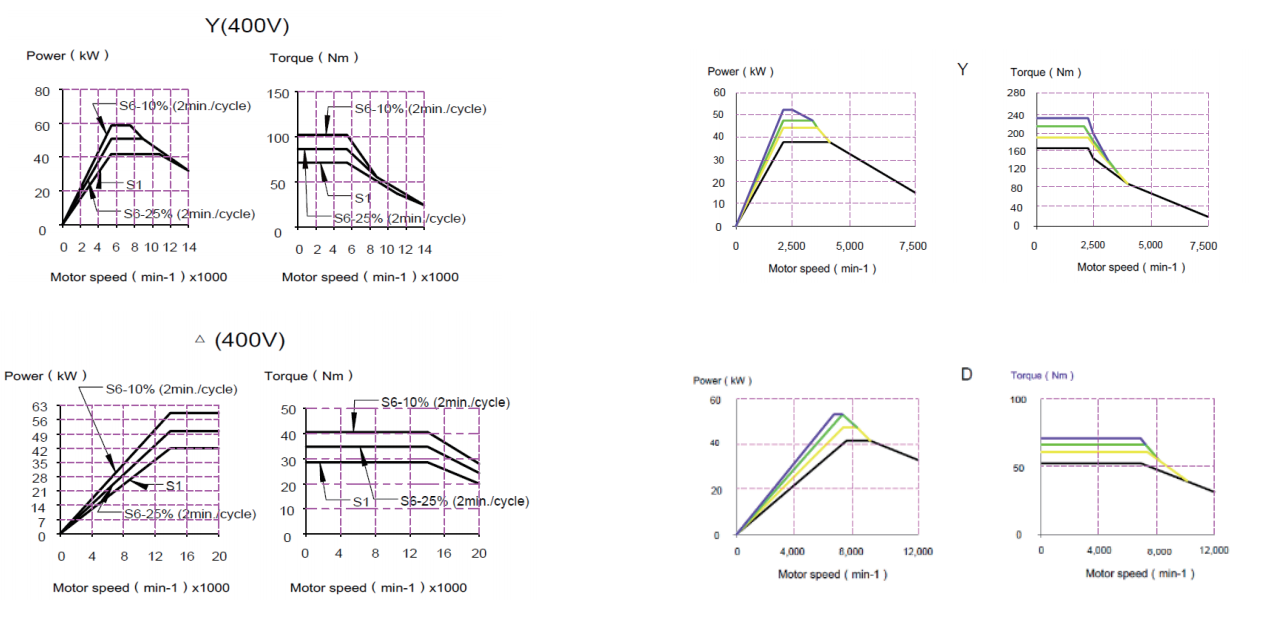

Electric spindle

High-speed milling of aluminum is effortless;

high-torque milling of titanium is no problem—I also offer turning capabilities.

HSK-A63(RTV5A400)

Low speed: 42/50 kW, 71.7/85 Nm, max speed 14,000 rpm

High speed: 42/50 kW, 28.6/33.7 Nm, max speed 20,000 rpm

HSK-A63/A100(RTV5A630/800)

Low speed: 37/45 kW, 163/196.5 Nm, max RPM 7500

High speed: 42/50 kW, 54/65 Nm, max RPM 12000

Max RPM for A63: 15000

Direct-drive cradle turntable

Technical Specs	T5A400	T5A630	T5A800
Workbench mm	400	630	800
Swing diameter m	m 500	800	1000
A-axis swing angle	±120	±110	±110
C-axis swing angle	n*360	n*360	n*360
	Single drive on the A axis	A-axis dual drive	A-axis dual drive

Cradle Five-Axis Machining Center Series

Technical Specifications	unit	RTV5A400	RTV5A630	RTV5A800
Workbench size	mm	Φ400	Φ630	Φ800
Maximum load of the workbench	Kg	200	1000	1200
Distance from spindle end face to worktable	mm	150-600	150-760	150-760
X-axis travel	mm	500	1000	1000
Y-axis travel	mm	650	1150	1150
Z-axis travel	mm	450	610	610
spindle		Direct-drive spindle / electric spindle	Direct-drive spindle / electric spindle	Direct-drive spindle / electric spindle
X/Y/Z Axis Rapid Move Speed	m/min	48	48/36	48/36
X/Y/Z Axis Cutting Speed	m/min	48	0-15	0-15
Tool magazine capacity		20	24	24
Positioning accuracy	mm	0.006	0.006	0.006
Repeat positioning accuracy	mm	0.004	0.004	0.004
Weight	t	9	17	18
Typical CNC system configuration		Siemens One;domestically made

FOR QUALITY

Finite Element Analysis

The machine tool design was carried out in cooperation with renowned domestic universities, and internationally advanced finite element analysis was adopted to ensure that the dynamic and static characteristics of the machine tool are reasonable, the load is reasonable, and the load distribution is uniform.

Collimator

Vibration meter

Bar ballinspection

Each machine is equipped with a ball gauge from RENISHAW of the UK. It is used to calibrate the true circularity and the geometric accuracy of the machine, and at the same time, circular cutting experiments are conducted to ensure the 3D processing accuracy and circular accuracy of the machine.

Three axes laser inspection

Each machine of Ningqing is calibrated using the laser interferometer from RENISHAW Company in the UK. Precise inspections and compensations are carried out for pitch errors, backlash, positioning accuracy, and repeatability positioning accuracy, etc., to ensure the dynamic, static stability and processing accuracy of the machines.

Three-coordinate system

We have established a comprehensive quality control system covering the entire chain from raw material warehousing and processing to finished product delivery. Using a coordinate measuring machine (CMM) as the core inspection tool, we conduct dimensional and geometric tolerance checks on key components. At the final product delivery stage, each machine tool must undergo standard test piece processing and testing, and an S-piece test is performed to verify dynamic accuracy and contour deviation using universal standards. The CMM is integrated throughout the entire product lifecycle, forming a closed-loop manufacturing process of "inspection-feedback-compensation," ensuring that every CNC machine tool leaving the factory possesses verifiable accuracy.
